【空調軟管】中央空調風機軟連接

sjjtadmin — Mon, 08 Jan 2018 00:59:31 +0000

【空調軟管】中央空調風機軟連接“讓每個房間都安靜下來”
"Air conditioning hose] the soft connection of the central air conditioner fan" let each room be quiet. "

上海淞江減震器集團有限公司官方網站為您介紹：【空調軟管】中央空調風機軟連接“讓每個房間都安靜下來”信息，淞江集團為眾多星級酒店、大學、醫院、機場等高端場所配套空調軟管，讓每一個風機都隔離震動、降低噪音，給大家一個安靜、舒適的環境。
Shanghai Songjiang absorber group limited official website for your introduction: [] of the central air conditioning air conditioning hose soft connection "let each room quiet" information, Songjiang group for many star hotels, universities, hospitals, airports and other high-end places supporting air conditioning hose, make every fan vibration isolation, to reduce noise, give you a quiet and comfortable environment.

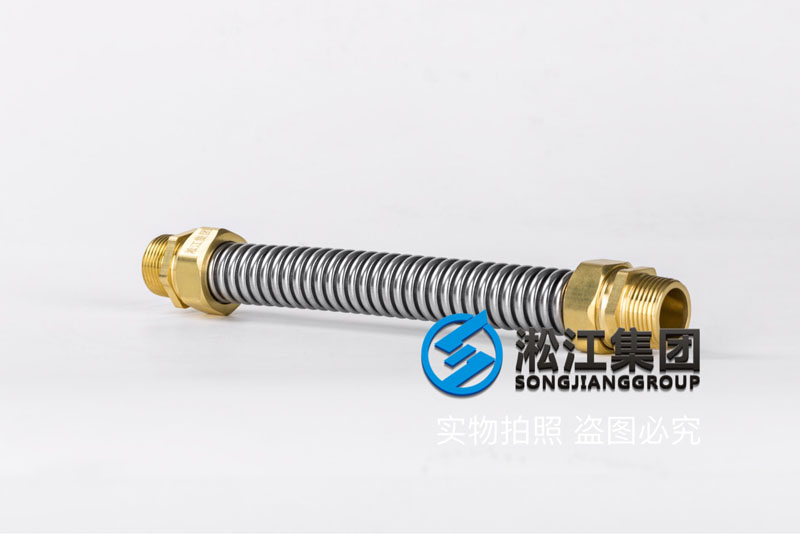

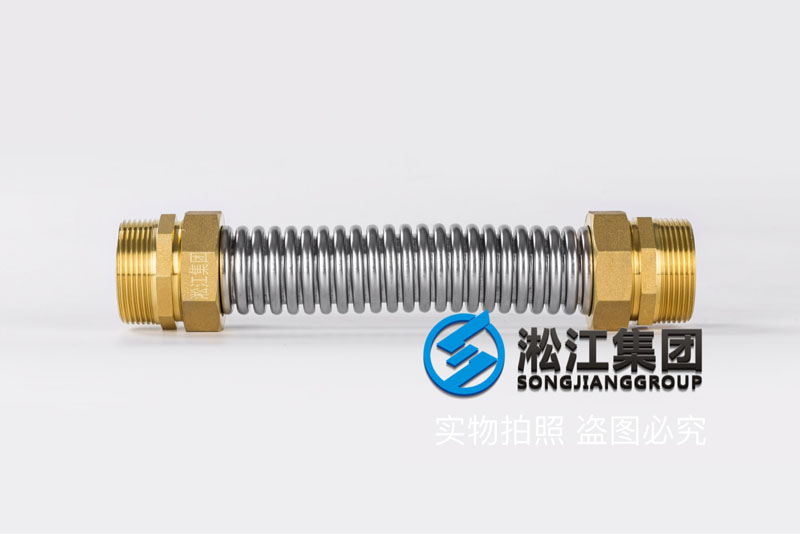

一、中央空調風機軟連接實物拍照：

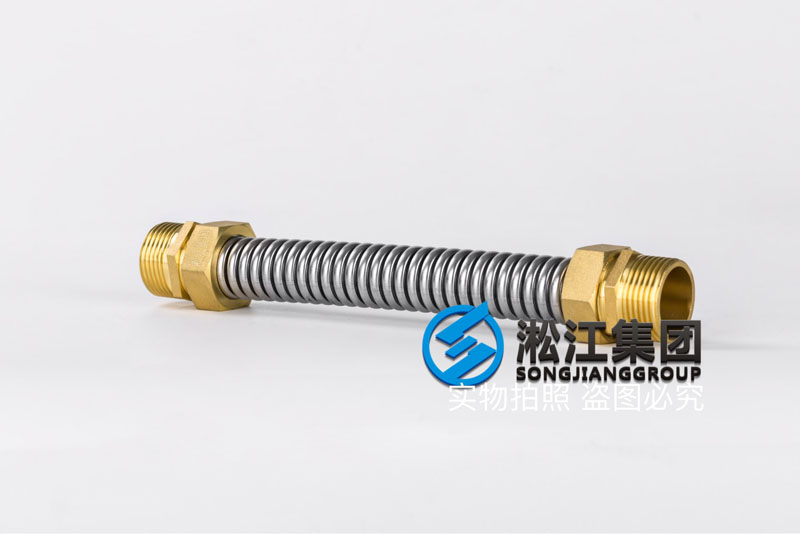

DN20

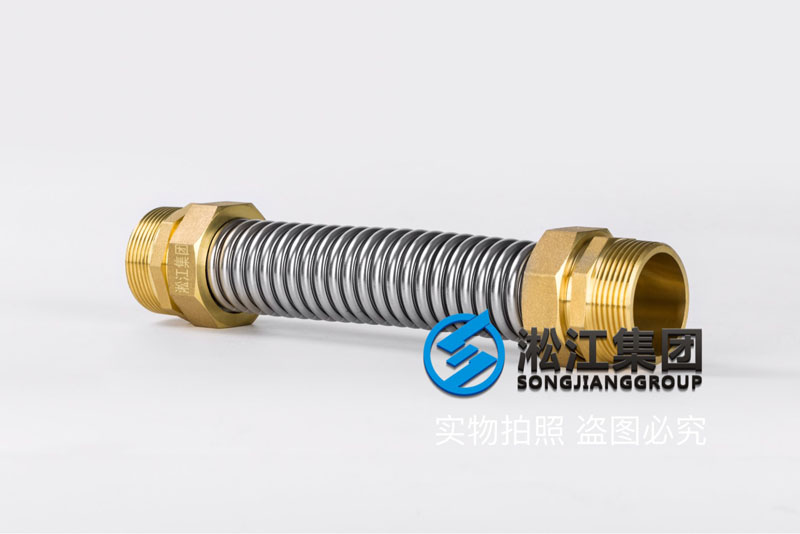

DN25

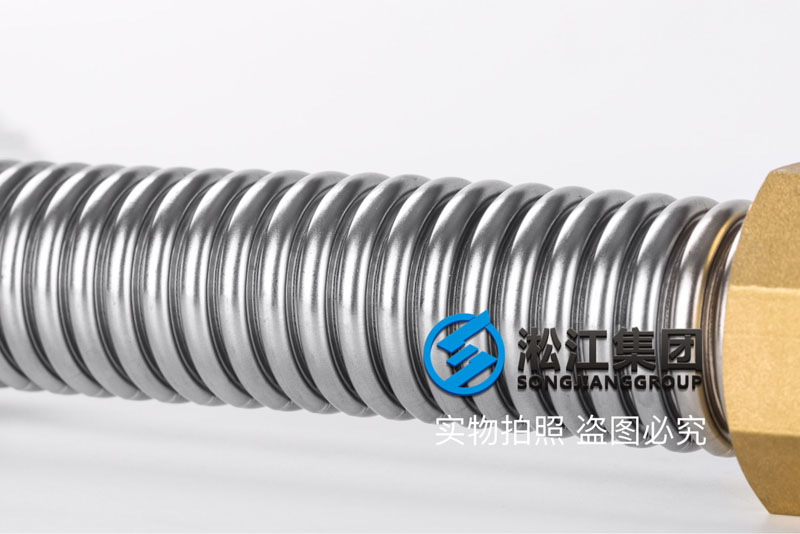

DN32

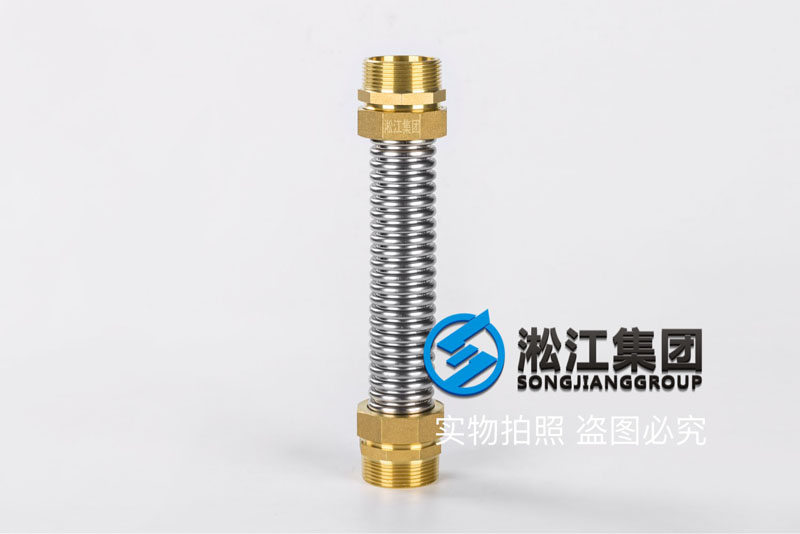

DN40

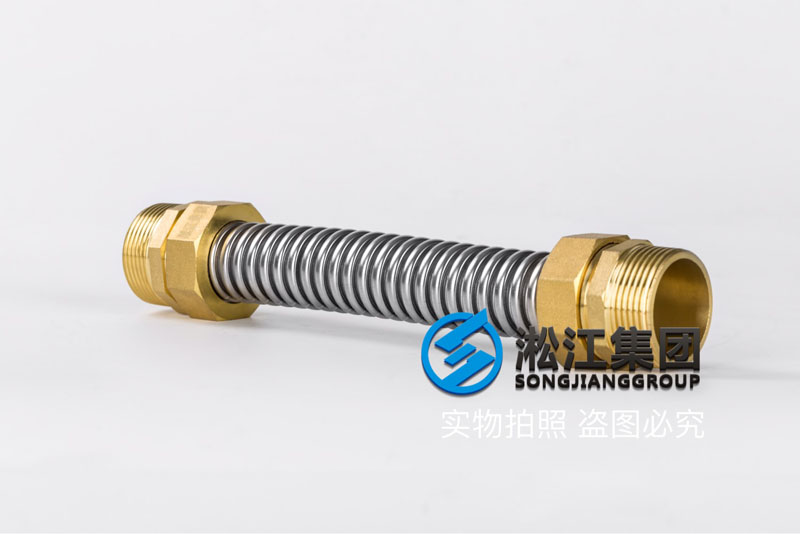

DN50

二、中央空調風機軟連接介紹：

1、產品名稱：空調軟管

2、產品圖片：見上圖

3、產品結構：內螺紋接頭+外絲

4、產品特點：無需焊接，可按需要長度自行裝配

5、產品通徑：DN20~DN50

6、制作長度：100mm~1000mm（標準長度為250mm）

7、產品材料：

①六角接頭：銅/不銹鋼

②六角螺母：銅/不銹鋼

③密封墊圈：硅橡膠/優質橡膠

④波紋波管：SUS304

8、適用于：風機盤管

9、優點：安裝簡單方法，成本低

10、介質要求：請?jiān)诠艿肋M(jìn)水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水氯離子含量超標，產生針孔腐蝕；

11、橡膠接頭是用在設備進出口的，可以補償軸向和橫向位移，減震效果是最好的。并且不受管道內部介質的腐蝕。

1. Product Name: air conditioning hose

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN20~DN50

6. production length: 100mm~1000mm (standard length is 250mm)

7. product materials:

Six angle joint: copper / stainless steel

Six angle nut: copper / stainless steel

(3) sealing washer: silicone rubber / high quality rubber

Corrugated tube: SUS304

一般中央空調風機盤管都會安裝軟連接，在進水口和回水口處都會安裝上軟連接、過濾器、閥門這3個部件。
這個軟連接一般分為2大類：
1、金屬軟連接（全不銹鋼金屬軟管、銅頭波紋軟管）
2、橡膠軟連接（螺紋絲扣橡膠接頭）
空調系統里的水在不停的循環，導致管道產生震動和噪音，為了更好的滿足每個風機盤管的安靜，在每個風機盤管的進口和出口安裝上軟連接，可以大大降低震動和噪音，另外在風機盤管的上方安裝4個吊式風機彈簧減震器，這樣可以將風機盤管完全與樓層和管道系統隔離，從而達到風機震動，樓層和管道不震動的效果。

General central air-conditioning fan coil will install soft connection, the inlet and outlet water will be installed on the valve, filter, connecting the 3 parts.

This soft connection is generally divided into 2 major categories:

1, metal soft connection (all stainless steel metal hose, copper head corrugated hose)

2, soft rubber connection (threaded connection soft rubber)

The water in the air conditioning system in continuous circulation, resulting in pipeline vibration and noise generated, in order to better meet the needs of each fan coil in the quiet, each fan coil inlet and outlet installation soft connection, can greatly reduce the vibration and noise, and at the top of the fan coil installed 4 hanging type spring shock absorber so, can be completely with the floor and the fan coil pipe system isolation, so as to achieve the fan vibration, and vibration effect of floor pipeline.

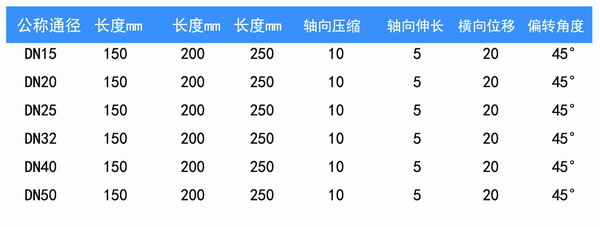

三、中央空調風機軟連接參數介紹：

四、中央空調風機軟連接發貨現場：

五、中央空調風機軟連接光譜儀檢測現場：

六、中央空調風機軟連接光譜檢測報告：

七、中央空調風機軟連接檢測報告：

提示：如需最新版中央空調風機軟連接檢測報告請聯系我們。

八、中央空調風機軟連接工廠介紹：

相關鏈接：【樣冊P96】各種類型不銹鋼金屬軟管

DN20中央空調軟管

sjjtadmin — Sat, 23 Dec 2017 13:03:54 +0000

DN20中央空調軟管
Central air conditioning hose

上海淞江減震器集團有限公司官方網站為您介紹：DN20中央空調軟管信息，淞江集團為眾多中央空調暖通系統配套軟管產品，空調風機安裝軟管后可以大大吸收風機本身產生的震動和噪音，是眾多高端場所的必選產品。
Shanghai Songjiang absorber group limited official website introduces for you: DN20 central air-conditioning hose, Songjiang group for a number of central air-conditioning HVAC systems supporting installation hose hose products, air conditioning fan after fan can greatly absorb the vibration and noise generated is required, many high-end establishments and products.

性能介紹：
公稱通徑：DN20mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

Nominal path: DN20mm

Natural length: 250mm

Axial compression: 10mm

Axial elongation: 5mm

Lateral displacement: 20mm

Deflection angle: 45 degrees

產品介紹：

1.產品名稱：DN20中央空調軟管

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

④波紋管：SUS304
Product introduction:

1. Product Name: DN20Central air conditioning hose

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304

以上DN20中央空調軟管信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，如需了解更多空調軟管產品請點擊：高品質金屬軟管
The above DN20 central air conditioning hose information comes from the metal hose center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.

相關鏈接：【樣冊P96】各種類型不銹鋼金屬軟管

DN25風機盤管軟連接

sjjtadmin — Sat, 23 Dec 2017 12:59:03 +0000

DN25風機盤管軟連接
Fan coil soft connection

上海淞江減震器集團有限公司官方網站為您介紹：DN25風機盤管軟連接信息，淞江集團為眾多星級酒店、機場、廣場等項目暖通系統配套風機盤管軟連接產品，該產品具有良好的減震效果，也保護了風機的長期使用壽命。
Shanghai Songjiang absorber group limited official website introduces for you: DN25 fan coil soft connection information, Songjiang group for many star hotels, airports and plazas HVAC systems supporting fan coil soft connection products, the product has a good damping effect, long and also protect the fan.

性能介紹：
公稱通徑：DN25mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

Nominal path: DN25mm

Natural length: 250mm

Axial compression: 10mm

Axial elongation: 5mm

Lateral displacement: 20mm

Deflection angle: 45 degrees

產品介紹：

1.產品名稱：DN25風機盤管軟連接

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

④波紋管：SUS304
Product introduction:

1. Product Name: DN25Fan coil soft connection

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304

以上DN25風機盤管軟連接信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，如需了解更多請點擊：高品質金屬軟管
The above DN25 fan coil soft connection information comes from the metal hose center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.

相關鏈接：【樣冊P96】各種類型不銹鋼金屬軟管

DN32空調金屬軟連接

sjjtadmin — Sat, 23 Dec 2017 12:38:01 +0000

DN32空調金屬軟連接
Metal soft connection of air conditioning

上海淞江減震器集團有限公司官方網站為您介紹：DN32空調金屬軟連接信息，淞江集團為中央空調系統暖通風機進出口配套DN32空調金屬軟連接產品，該產品采用不銹鋼304波紋，具有良好的防腐效果和良好的使用壽命，高達10多年。
Shanghai Songjiang absorber group limited official website for your introduction: DN32 air conditioning metal soft connection information, Songjiang group for the central air conditioning system in HVAC machine import and export supporting DN32 air conditioning metal soft connecting products, the products with 304 stainless steel bellows, has good anticorrosion effect and good up to 10 years.

性能介紹：
公稱通徑：DN32mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

Nominal path: DN32mm

Natural length: 250mm

Axial compression: 10mm

Axial elongation: 5mm

Lateral displacement: 20mm

Deflection angle: 45 degrees

產品介紹：

1.產品名稱：DN32空調金屬軟連接

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

④波紋管：SUS304
Product introduction:

1. Product Name: DN32Metal soft connection of air conditioning

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304以上DN32空調金屬軟連接信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，如需了解更多金屬軟管產品點擊：金屬軟管
The above DN32 air conditioning metal soft connection information comes from the metal hose center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.

相關鏈接：【樣冊P96】各種類型不銹鋼金屬軟管

DN40絲扣波紋軟管

sjjtadmin — Sat, 23 Dec 2017 12:27:56 +0000

DN40絲扣波紋軟管
Corrugated hose thread

上海淞江減震器集團有限公司官方網站為您介紹：DN40絲扣波紋軟管信息，淞江集團生產各種管道軟連接產品，以下是絲扣波紋軟管介紹，該產品具有良好的減震效果，使用成本低，壽命長達10多年。
Shanghai Songjiang absorber group limited official website for your introduction: DN40 screw corrugated hose, soft connection products Songjiang group specializing in the production of various pipelines, the following is the thread of corrugated hose introduction, the product has a good damping effect, low cost, long of 10 years.

性能介紹：
公稱通徑：DN40mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

Nominal path: DN40mm

Natural length: 250mm

Axial compression: 10mm

Axial elongation: 5mm

Lateral displacement: 20mm

Deflection angle: 45 degrees

產品介紹：

1.產品名稱：DN40絲扣波紋軟管

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

④波紋管：SUS304
Product introduction:

1. Product Name: DN40?Corrugated hose thread

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304以上DN40絲扣波紋軟管信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，淞江集團生產各種金屬軟管產品，我廠經過德國萊茵TUV認證，歡迎的我廠實地參觀考察。
The above Dn40 thread corrugated hose information comes from the metal hose product center on the official website of Shanghai Songjiang shock absorber Group Co., Ltd. Songjiang group produces various metal hose products. Our factory has been certified by TUV in Rhine, Germany. You are welcome to visit our factory on site.

相關鏈接：【樣冊P96】各種類型不銹鋼金屬軟管

DN50冷熱水銅頭金屬軟管

sjjtadmin — Sat, 23 Dec 2017 12:17:20 +0000

DN50冷熱水銅頭金屬軟管
Copper head metal hose with cold and hot water

上海淞江減震器集團有限公司官方網站為您介紹：DN50冷熱水銅頭金屬軟管信息，我們?yōu)楸姸嗬錈崴艿琅涮足~頭金屬軟管產品，該產品采用黃銅材質生產的活接絲扣鏈接方式，中間采用不銹鋼304波紋材質，具有良好的彎曲效果和減震效果，銅頭活接具有良好的耐腐蝕和方便性。
Shanghai Songjiang absorber group limited official website for your introduction: DN50 hot and cold water, copper head hose information, we have many cold and hot water pipes supporting copper head hose products, the product is made of brass material production connecting thread link, the middle 304 stainless steel corrugated material, has good bending effect and damping effect the copper head is movably connected, has good corrosion resistance and convenience.

性能介紹：
公稱通徑：DN50mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

Nominal path: DN50mm

Natural length: 250mm

Axial compression: 10mm

Axial elongation: 5mm

Lateral displacement: 20mm

Deflection angle: 45 degrees產品介紹：

1.產品名稱：DN50冷熱水金屬軟管

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

④波紋管：SUS304
Product introduction:

1. Product Name: DN50 cold and hot water hose

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304以上DN50冷熱水銅頭金屬軟管信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，如需了解更多請點擊：空調軟管
The above DN50 cold and hot water copper head metal hose information comes from the official website metal hose center of Shanghai Songjiang shock absorber Group Co., Ltd.

相關鏈接：【樣冊P96】各種類型不銹鋼金屬軟管
